1. Electric Furnace Selection and Specifications
The following specifications apply to the configurations identified below, not to every model in the product range.
| Furnace Type |
Available Specifications |
Heating and Control Configuration |
Applicable Processes or Conditions |
| Box Type Resistance Furnace |
Temperature grades: 1200°C, 1400°C, 1600°C, 1700°C, 1800°C |
Resistance wire for lower-temperature grades; silicon carbide rods for intermediate-temperature grades; molybdenum disilicide (MoSi₂) heating elements for higher-temperature grades. Multi-zone heating and PID control. Temperature control deviation: ±5°C. |
Batch heating and heat treatment |
| Well-type Resistance Furnace |
Rated temperature: 750°C; working dimensions: Ø4 m × 7 m deep; loading capacity: 80 tons; temperature uniformity: ±5°C |
Electric resistance heating |
Long shafts, heavy shafts, power station rotors, and rolling mill rolls |

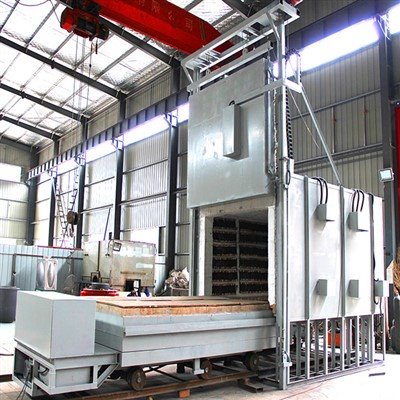

| Trolley Resistance Furnace |
Rated temperature: 1200°C; working dimensions: 10,000 × 3,000 × 2,500 mm; loading capacity: 150 tons; temperature uniformity: ±10°C |
Electric resistance heating; multi-stage PID control |
Annealing, normalizing, quenching, and tempering of large workpieces |
| Hood Type Resistance Furnace |
Batch-type operation; movable heating hood and fixed base |
PID temperature control and PLC; protective atmosphere options include nitrogen and hydrogen |
Batch heat treatment and protective-atmosphere annealing |
| Mesh Belt Furnace |
Continuous workpiece conveying through the heating chamber |
Electric heating; gas-electric hybrid heating is also described as an available configuration |
Continuous heating and heat treatment |

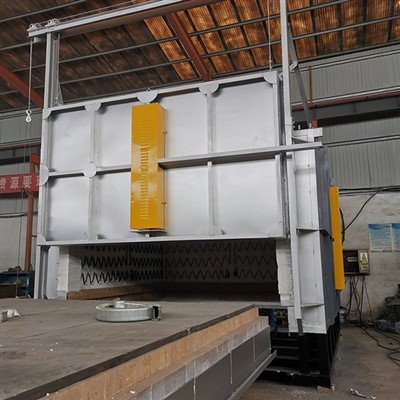

| Quenching Resistance Furnace |
Heating temperature range: 800–1200°C |
Electric resistance heating; quenching media include water, oil, and polymer |
Heating before quenching |
| Vacuum Quenching Furnace |
Cooling options: high-pressure inert gas quenching with nitrogen or argon; vacuum oil quenching on selected configurations; gas circulation cooling |
Resistance heating elements; graphite heaters on high-temperature models |
Vacuum heat treatment and quenching |
2. Furnace Structures and Configuration Options
Different industrial furnace structures are available for different loading and production arrangements.
Box Type Resistance Furnace
Available structures include:
- Vertical
- Horizontal
- Split
- Integrated
- Movable trolley configurations on selected models
Temperature grades and heating element materials vary by furnace configuration.

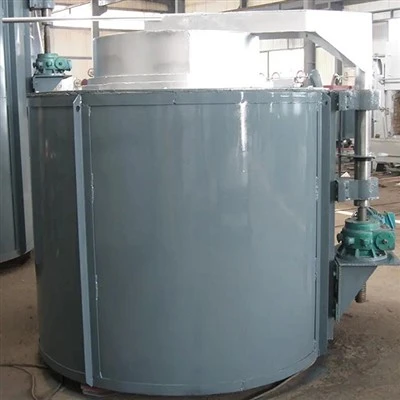

Well-type Resistance Furnace
The vertical furnace structure accommodates long and heavy workpieces. The available 80-ton configuration has a working diameter of 4 m and a depth of 7 m.

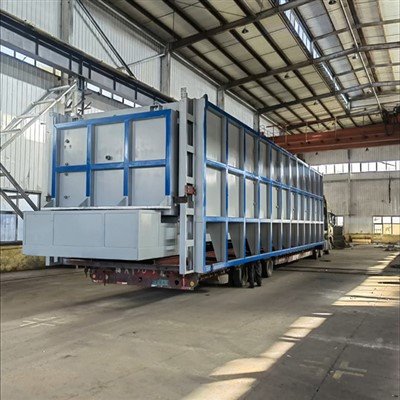

Trolley Resistance Furnace
The trolley structure supports loading large and heavy workpieces. Available configurations include enlarged furnace chambers, increased loading capacity, and electric or hydraulic furnace door drives.

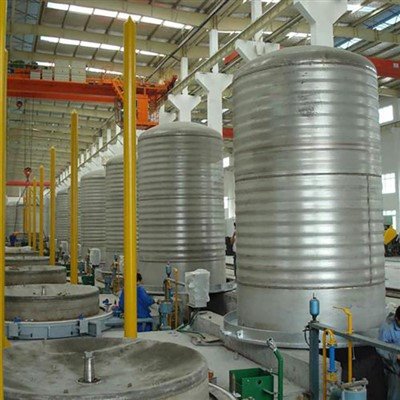

Hood Type Resistance Furnace
The heating hood moves over a fixed furnace base. The sealed inner cover can be configured for nitrogen or hydrogen protective-atmosphere annealing.

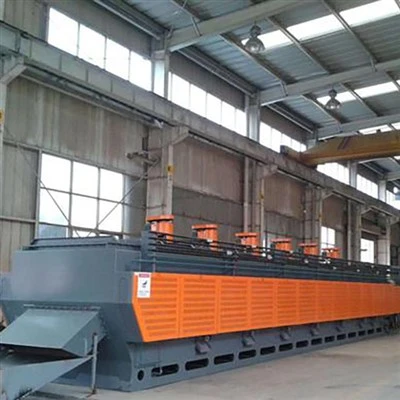

Mesh Belt Furnace
The mesh belt conveys workpieces continuously through the heating chamber. Electric heating and gas-electric hybrid heating are separate configuration options.
Vacuum Quenching Furnace
Available cooling configurations include inert gas quenching, vacuum oil quenching on selected models, and gas circulation cooling. Heating element configurations include resistance elements and graphite heaters on high-temperature models.
3. Trolley Resistance Furnace Customization
For trolley resistance furnace projects, available customization options include:
| Customization Item |
Available Options |
| Furnace chamber |
Enlarged chamber dimensions |
| Loading capacity |
Increased heavy-load capacity |
| Heat treatment process |
Customized processes for different workpieces, including rolls |
| Production line |
Integration of multiple furnaces with a centralized control room |
| Loading and unloading |
Automatic loading and unloading |
| Energy utilization |
Waste heat recovery |
| Furnace atmosphere |
Protective-atmosphere configuration |
| Furnace door drive |
Electric or hydraulic drive |
Automatic loading and unloading are available as configuration options rather than standard features on every trolley furnace.
4. Manufacturing and Supply
Danyang Dingfeng Industrial Furnace Co., Ltd. designs and manufactures industrial furnaces, including resistance furnaces, vacuum furnaces, trolley furnaces, well-type furnaces, hood furnaces, mesh belt furnaces, and other industrial heating equipment.
Our product range covers different furnace structures and heat treatment requirements, from batch-type heating equipment to large-capacity furnaces and continuous conveying systems.
For trolley furnace projects involving large workpieces, available configurations include enlarged chambers, increased loading capacity, customized heat treatment processes, and multi-furnace production line integration.
5. Request an Industrial Electric Furnace Quotation
Send us your available workpiece specifications, drawings, sample photos, or estimated order quantity to request an industrial electric furnace selection and quotation.
For a more accurate equipment proposal, include the workpiece material, dimensions, individual weight, required loading capacity, heat treatment process, operating temperature, and production requirements.
We will review the information and identify the relevant furnace type and available configuration for your project.
