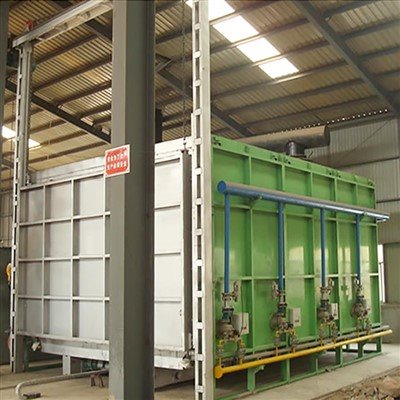

2. Trolley Forging Furnace Specifications
Our Trolley Forging Furnace is designed for batch heating of large and heavy workpieces, including steel ingots and billets before forging. Its movable trolley structure allows workpieces to be loaded outside the furnace before being moved into the heating chamber.
| Specification |
Available Parameter |
| Rated Temperature |
1300°C |
| Working Dimensions (L × W × H) |
8000 × 4000 × 3000 mm |
| Loading Capacity |
300 tons |
| Furnace Temperature Uniformity |
≤ ±10°C |
| Available Fuels |
Natural Gas, Coal Gas, LPG |
| Temperature Control |
Intelligent Multi-stage PID Control |
The rated temperature is 1300°C, and the specified furnace temperature uniformity is ≤ ±10°C. These figures should not be interpreted as continuous operating temperature or temperature control accuracy.
3. Furnace Loading and Unloading Configuration
The trolley moves along rails and carries workpieces into and out of the furnace.
The loading and unloading process is as follows:
- The trolley moves out of the furnace.
- A crane loads the workpieces onto the trolley.
- The loaded trolley moves into the furnace for heating.
- After heating, the trolley moves out for unloading.
An automatic loading and unloading system is available as an optional configuration. Production line integration is also available for projects requiring automated material handling.
4. Customization and Available Options
We can customize the Trolley Forging Furnace in the following areas:
- Furnace chamber dimensions
- Rated temperature
- Heating zone configuration
- Trolley loading capacity
- Automatic control system
- Waste heat recovery system
- Automatic loading and unloading system
- Production line integration
- Fuel type
These customization options cover furnace dimensions, heating configuration, loading capacity, fuel selection, and material handling.
5. Manufacturing and Quality Control
Our gas furnace manufacturing facilities include CNC plasma cutting, flame cutting, hydraulic shearing, CNC bending, welding, and assembly equipment.
Our machining and inspection equipment includes:
- CNC lathes
- Vertical machining centers
- Coordinate measuring machines (CMM)
- Ultrasonic flaw detectors
- Simulation testing platforms
- Gas-tightness testing equipment
For furnace projects, we provide site surveys, 3D layout planning, and energy analysis. Installation and commissioning services include basic calibration, weld inspection, and furnace temperature uniformity testing.
6. Request a Gas Furnace Quotation
Send us your workpiece dimensions, individual or batch loading weight, required heating temperature, preferred fuel type, and production requirements.
You can also send existing equipment specifications, drawings, or workpiece photos for our review. We will use this information to identify a suitable industrial gas furnace type and configuration for your project.
