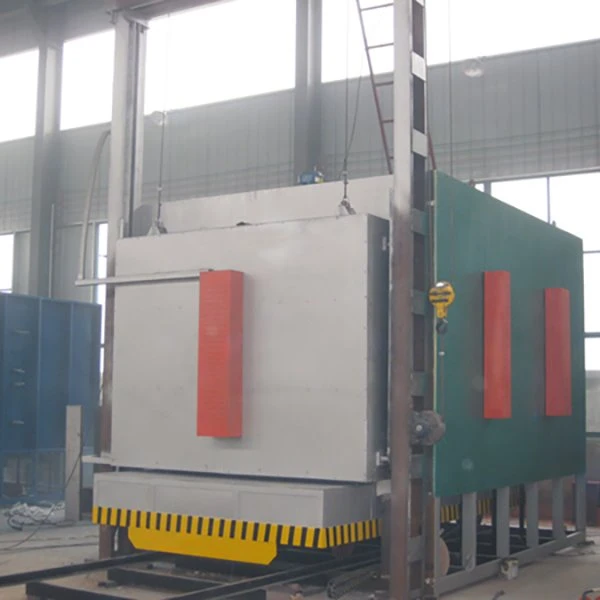

Trolley Type Tempering Furnace
A trolley type tempering furnace is intended for backup rolls, military components, nuclear power parts, and steel workpieces. Heat source is electric — resistance elements. The structure uses a movable car-bottom. Main applications: tempering and stress relief after quenching. In practical terms, it deals with eliminating internal stress and stabilizing dimensions on heavy workpieces.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of trolley type tempering furnace in China. If you're going to wholesale durable trolley type tempering furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
A trolley type tempering furnace is intended for backup rolls, military components, nuclear power parts, and steel workpieces. Heat source is electric - resistance elements. The structure uses a movable car-bottom. Main applications: tempering and stress relief after quenching. In practical terms, it deals with eliminating internal stress and stabilizing dimensions on heavy workpieces.
Working Principle
Inside the chamber, electric resistance heating elements convert electrical energy into heat. That alone would cause uneven temperatures, so a forced hot-air circulation system is added. The two together create a high-velocity, reasonably uniform airflow field inside the chamber. Heat transfers to the workpieces on the movable car via forced convection.
The workpieces are heated to the rated tempering temperature of 750°C. They soak for a preset time depending on section thickness and material. After that, most of the quenching stress is relieved. Dimensional stability improves. Toughness and mechanical properties typically come up as well.

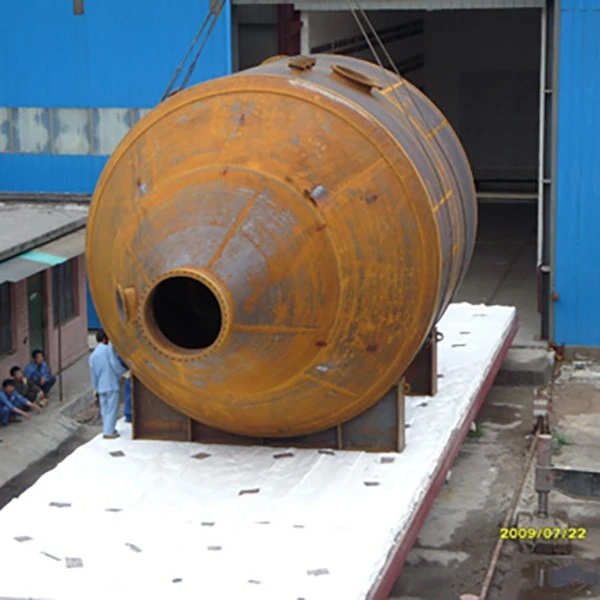

The movable car runs on rails. That makes loading and unloading straightforward. The furnace body stays stationary while workpieces move in and out - a practical setup for batch tempering large parts.
Features
Medium-to-low temperature control can be held fairly tight
Forced hot-air circulation - necessary for consistency in tempering
Designed around heavy workpieces that need stress relief
Suitable for military spec, nuclear components, and various industrial rolls (backup rolls, work rolls, etc.)
Technical Parameters
|
Parameter |
Specification |
|
Rated Temperature |
750°C |
|
Working Size |
7000 × 3500 × 3200 mm |
|
Temperature Uniformity |
≤ ±5°C |
|
Loading Capacity |
100 tons |
|
Heat Source |
Electric (resistance type) |
|
Applicable Process |
Tempering / stress relief for backup rolls, military parts, nuclear components, steel workpieces |
|
Temperature Control |
Multi-stage PID + forced hot-air circulation |
Applications
The trolley type tempering furnace is used in many fields,including:
Heavy machinery and metallurgy
Military equipment manufacturing
Nuclear power industry
General machinery manufacturing
Railway and transportation
Customization Capabilities
Dingfeng Industrial Furnace offers modifications based on user production requirements. Common customizations:
Furnace internal dimensions and car load rating
Temperature range and heating zone layout
Options: forced circulation, automated loading, protective atmosphere
Rail configuration, door mechanism, exhaust arrangement
