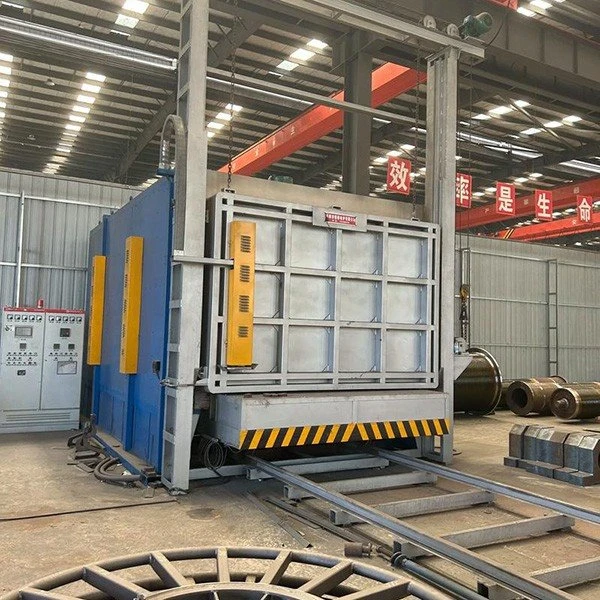

Trolley Resistance Furnace
Trolley resistance furnace is built for heavy stuff – rolling rolls, big forgings. Electric heated, max temp 1200°C. If you're doing high-temperature work on metallurgical rolls, this is what you need.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of trolley resistance furnace in China. If you're going to wholesale durable trolley resistance furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
Trolley resistance furnace is built for heavy stuff – rolling rolls, big forgings. Electric heated, max temp 1200°C. If you're doing high-temperature work on metallurgical rolls, this is what you need.
Working Principle
The heating elements are high power – resistance type. They bring the trolley resistance furnace up to 1200°C. Heat gets into the workpieces by radiation and convection. A 10 ton roll takes a while to soak through at that temperature, but the elements have the muscle.
The intelligent control system runs the whole cycle. Ramp up, soak, cool down. You can do annealing, normalizing, quenching, tempering. Whatever your roll needs. The goal is to fix the grain structure so you get good strength, hardness, and service life.
Features
1200°C top temperature. That's hot enough for most roll steels.
Extra large chamber. Fits big rolls.
Built specifically for heavy-duty rolls and forgings.
Technical Parameters
|
Rated temperature |
1200°C |
|
Working size |
10,000 mm long × 3,000 mm wide × 2,500 mm high |
|
Temperature uniformity |
within ±10°C |
|
Loading capacity |
150 tons |
|
Heat source |
electric resistance |
|
Process |
high-temperature heat treatment for rolls and heavy workpieces |
|
Control |
multi-stage PID |
Applications
Metallurgical rolling roll industry. This is the main market. Work rolls, backup rolls, roll shafts.
Heavy forging industry. Big forgings that need high temperature treatment.
Military and nuclear power. Some customers in these sectors buy from us. They usually want extra documentation.
Mining machinery. Large components that see heavy wear and need good hardness.
The trolley resistance furnace does annealing, normalizing, quenching, and tempering. Large rolling rolls and heavy mechanical components.
Customization
Dingfeng Industrial Furnace. We build to your needs.
- Extra large chamber and heavy load. We've done bigger than this. Tell us your part size.
- Custom heat treatment processes. Different rolls need different cycles.
- Multi-furnace production line integration. One control room, several furnaces.
- Automated loading and unloading, waste heat recovery, atmosphere protection. Add what you need.
- Furnace structure and door drive. Electric, hydraulic – whatever fits your shop.
