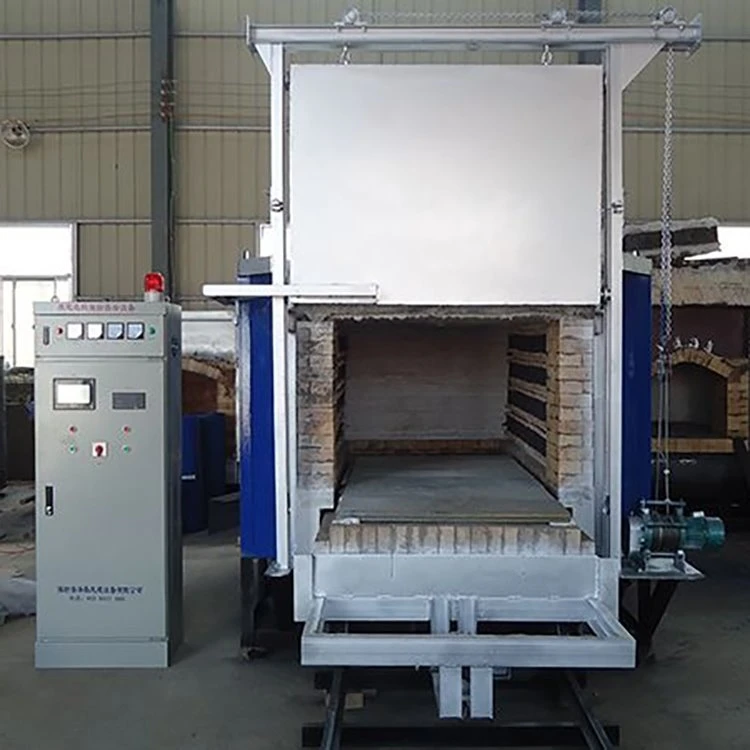

Car Bottom Quenching Furnace

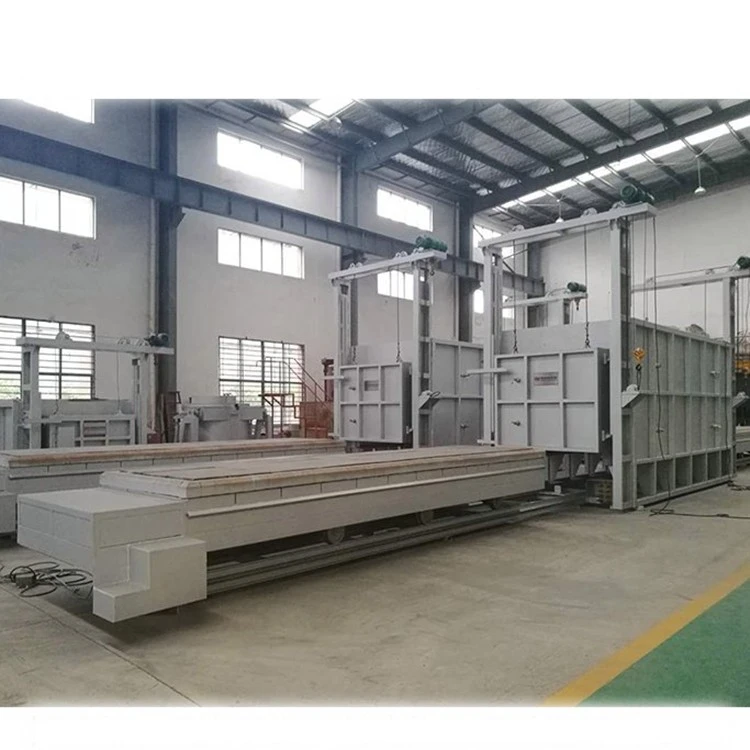

A car bottom quenching furnace — think of it as a batch-type industrial heat treatment unit built for large, heavy, or oddly shaped metal workpieces. The standout feature? A movable hearth platform, commonly called the "bogie" or "car." You load the workpiece onto this bogie outside the furnace, then roll the whole thing into the chamber for heating.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of car bottom quenching furnace in China. If you're going to wholesale durable car bottom quenching furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
A car bottom quenching furnace - think of it as a batch-type industrial heat treatment unit built for large, heavy, or oddly shaped metal workpieces. The standout feature? A movable hearth platform, commonly called the "bogie" or "car." You load the workpiece onto this bogie outside the furnace, then roll the whole thing into the chamber for heating. Once it hits the target temperature, the bogie zips back out, and the workpiece gets dunked into a quenching medium. The goal? Boost hardness, wear resistance, and overall mechanical properties.
Working Principle
The whole operation breaks down into four main steps:
Loading & Entering – Using a crane or forklift, you place the workpieces onto the bogie outside the furnace. Then a traction mechanism pulls the bogie smoothly into the chamber.
Heating & Soaking – After the furnace door seals shut, the heating elements (resistance ribbons or burners, depending on the model) kick in, raising the temperature to the preset quenching level. An advanced microcomputer control system keeps the temperature precise, ensuring even heating and complete austenitization.
Rapid Quenching – Soaking done? The bogie quickly rolls out. For standard models, a lifting mechanism lowers the workpieces into a quenching tank. For tilting bogie furnaces, the bogie hydraulically tilts - typically to about 45° - sending the hot workpieces sliding fast into the quenching medium (water, oil, etc.). The result? High hardness.
Unloading & Cycle – After quenching and cooling, you unload the workpieces. Then the bogie resets, ready for the next batch.
Features
High Load Capacity – Built for heavy lifting. Load capacities range from a few tons up to over 100 tons. No problem handling heavy rolls or large castings.
Flexible Loading/Unloading – The bogie can move completely out, making it easy to lift and position large workpieces.
Excellent Energy Efficiency – Uses full-fiber lining (ceramic fiber modules). Low heat storage, fast heating, and roughly 30% more energy efficient than traditional brick linings.
Precise Temperature Control – Equipped with multi-zone independent control and PID intelligent programming. Accuracy reaches ±1℃, with uniformity between ±5℃ and ±10℃.
Fast Transfer – Especially with tilting bogie designs. The trip from furnace exit to quenching medium takes just seconds - no significant temperature drop.
Safety Interlocks – Electrical interlocks and anti-overturn devices are installed on the bogie movement, door lifting, and tilting mechanisms. Keeps operation safe.
High Sealing Performance – Uses labyrinth seals, automatic soft seals, and sand seals to prevent heat leakage. Also improves the workshop environment.
Eco-friendly – Modern gas-fired models often come with exhaust gas treatment and heat recovery systems, so they meet environmental emission standards.
Applications
The car bottom quenching furnace is used in many fields,including:
Machinery Manufacturing
Large gears, bearings, molds, spring steel, and all sorts of mechanical parts.
Heavy Equipment
Wind power spindles, nuclear power rotors, marine castings, large rolls, crusher hammers, wear-resistant liners.
Automotive & Rail Transit
Engine parts, drive shafts, railway wear-resistant materials, wheels, axles.
Energy & Chemical
Oil pipeline fittings, chemical vessels, boiler components, large steel structures.
New Materials & Metallurgy
High manganese steel castings, stainless steel solution treatment, powder metallurgy sintering, magnetic materials.
