Well-type Aging Furnace
Well-type aging furnace is a vertical pit furnace for aging – what some people call precipitation hardening or artificial aging. You use it on aluminum alloys, magnesium alloys, steel, and other heat treated metals after casting, solution treatment, or welding. Basically you're stabilizing the mechanical properties.The vertical well structure lets you load long or heavy components straight up and down. That gives you uniform heating and less deformation.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of well-type aging furnace in China. If you're going to wholesale durable well-type aging furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
Well-type aging furnace is a vertical pit furnace for aging – what some people call precipitation hardening or artificial aging. You use it on aluminum alloys, magnesium alloys, steel, and other heat treated metals after casting, solution treatment, or welding. Basically you're stabilizing the mechanical properties.The vertical well structure lets you load long or heavy components straight up and down. That gives you uniform heating and less deformation.
Features
- Even temperature. This matters a lot for aging. If the temperature varies, the hardness varies. We put a forced hot air circulation system in – a fan on the lid blowing down through a stainless steel air guide duct. That keeps the temperature consistent through the whole depth. Typically within plus or minus five degrees C. I've measured plus or minus three on a well tuned unit.
- Good for stress relieving. Aging gets rid of internal stresses that build up during solution treatment or welding. Aluminum parts can warp if you don't age them right. The well design minimizes that because the parts hang straight.
- Saves power. Lightweight lining – ceramic fiber or composite refractory. Low heat storage means the furnace doesn't soak up a lot of energy. Compared to old brick lined aging furnaces, you save thirty to forty percent on power. I've got a customer who swapped his brick unit for our fiber version. His power bill dropped from $3200 a month to $2000.
- Safe operation. The lid has safety limit switches. If you open the lid, the heating power cuts off. You don't want someone reaching into a live furnace. That's just common sense.
- Precise control. PID microcomputer controllers. High accuracy. You can hold a stable temperature within a degree or two. For aluminum aging, that's critical. Go ten degrees too high and you overage – the hardness drops. Ten degrees low and you don't get full strength.
- Versatile. Not just aluminum. You can do low temperature tempering and annealing of steel parts, light alloy components, whatever needs stable properties at moderate temperatures. A lot of customers buy one well furnace and run multiple processes in it.
- Smooth lid operation. The lid moves. Manual levers for small pits, electric hoists for medium, hydraulic for big ones. We often put guide columns on the lid so it doesn't wobble when it goes up and down. A wobbly lid is a pain.
Applications
Aluminum industry. Aging of aluminum alloy castings and extrusions.
Aerospace industry. High strength aluminum and alloy structural parts.
Automotive industry. Wheels, engine components, lightweight structural parts.
Machinery manufacturing. Precision components that need stable mechanical properties. Shafts, housings, brackets.
Metallurgical industry. Precipitation hardening of alloy steels and metals.
Electronics industry. Aluminum heat sinks and precision metal components. A heat sink maker ages their extrusions at 200°C for 3 hours. Well furnace gives them even temperature across the whole load.
Rail transit industry. Structural parts that need dimensional stability and strength. Railway car components, brackets, fittings.
Equipment Structure
Let me go through the parts of well-type aging furnace.
- Furnace shell and pit. Cylindrical steel shell that sits in a concrete pit. Lined with energy saving refractory bricks and ceramic fiber insulation. Steel thickness is 6 to 12mm depending on the diameter. The pit floor has a drain – water gets in sometimes.

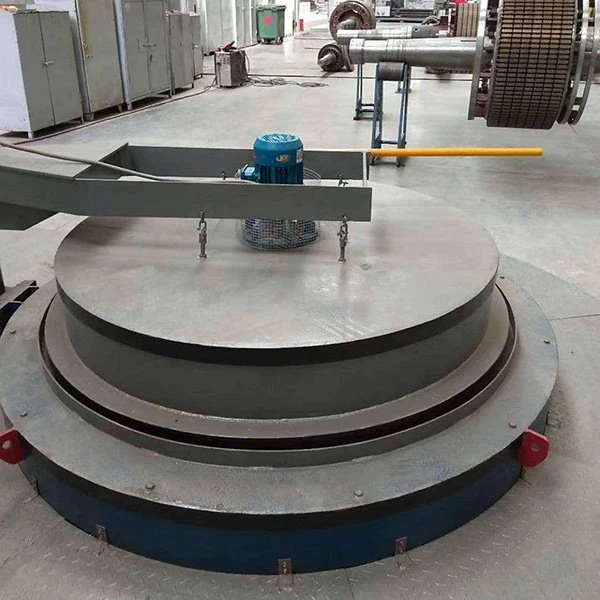

- Furnace lid. Heavy steel cover. Lined with stainless steel on the inside and refractory insulation. The fan mounts on the lid. The heating elements also come through the lid on some designs. The lid is heavy – you need a hoist or hydraulic lift.
- Heating elements. High resistance alloy wire – 0Cr25Al5 is common. Wound in coils or spirals, mounted on refractory supports along the pit walls. You want the elements evenly spaced so you don't get hot bands.
- Circulation system. A high temperature centrifugal fan mounted on the lid. Blows air down through a stainless steel air guide duct. The duct directs the air to the bottom, then it comes back up around the sides. That gives you a loop. Without this system, forget about uniformity.
- Control system. PID microcomputer controllers. Electrical cabinets with contactors or SCRs. You program your aging curves – ramp up, soak time, cool down. The controller logs everything. Some customers want data recording for quality certification.
