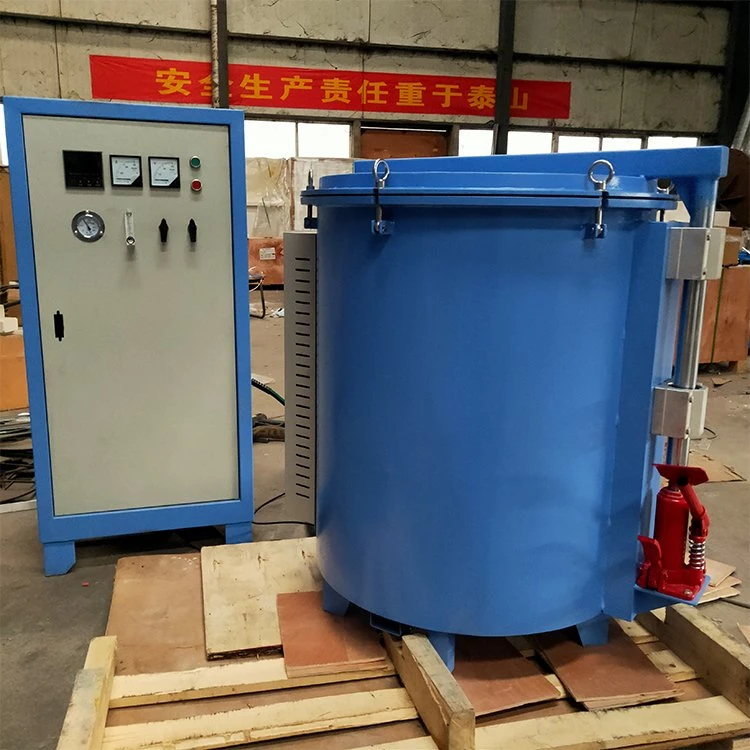

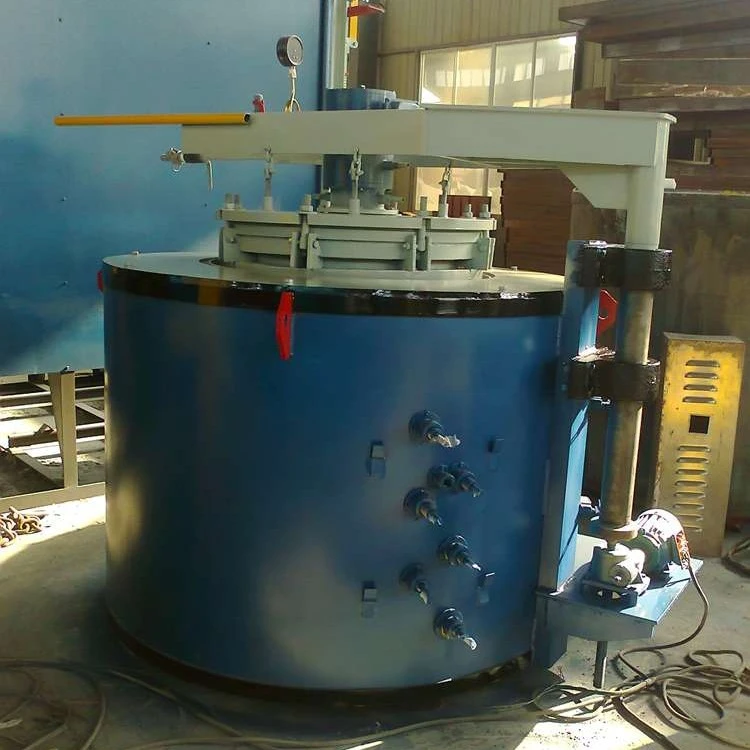

Vacuum Well Furnace
A Vacuum well furnace is a highly advanced vertical heat treatment furnace that processes workpieces inside a sealed, vacuum-tight chamber. By evacuating the air from the deep pit-like heating zone, it creates an oxygen-free environment. This furnace is specifically designed for high-end applications requiring absolutely oxidation-free, bright, and clean surface finishes, as well as superior metallurgical properties.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of vacuum well furnace in China. If you're going to wholesale durable vacuum well furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
A Vacuum well furnace is a highly advanced vertical heat treatment furnace that processes workpieces inside a sealed, vacuum-tight chamber. By evacuating the air from the deep pit-like heating zone, it creates an oxygen-free environment. This furnace is specifically designed for high-end applications requiring absolutely oxidation-free, bright, and clean surface finishes, as well as superior metallurgical properties.
Working Principle
Workpieces are vertically suspended and loaded into the furnace chamber using a crane or hoist.
The furnace chamber is sealed and vacuum is created using a vacuum pumping system.
Electric heating elements heat the workpieces under vacuum or inert gas protection (argon/nitrogen).
The intelligent control system precisely regulates temperature, vacuum level, and soaking time.
After heat treatment, controlled cooling is performed under vacuum or inert gas.
The furnace is returned to atmospheric pressure before unloading.
This process ensures clean surface quality, precise metallurgical structure, and minimal deformation.
Features
High Vacuum Environment
Prevents oxidation, decarburization, and surface contamination.
Vertical Well Structure
Ideal for long shafts and large components with minimal deformation.
High Precision Temperature Control
Advanced PLC/PID systems ensure accurate thermal processing.
Excellent Surface Quality
Produces clean, bright surfaces without oxidation or scaling.
Controlled Atmosphere Capability
Supports vacuum, argon, nitrogen, or mixed gas environments.
Uniform Heating Performance
Optimized heating chamber design ensures stable temperature distribution.
Low Distortion Heat Treatment
Vertical loading reduces deformation of long workpieces.
High Automation Level
Supports automatic vacuum control, heating curves, and data recording.
Applications
This Vacuum well furnace is widely used in many fields,including:
- Aerospace Industry:Used for high-performance alloy components requiring clean, precise heat treatment.
- Automotive Industry:Suitable for transmission shafts, gears, and high-strength components.
- Tool & Die Industry:Applied in vacuum hardening of molds, dies, and cutting tools.
- Precision Machinery:Used for high-accuracy mechanical components with strict quality requirements.
- Medical Equipment Industry: Suitable for stainless steel and alloy medical instruments.
- Metallurgical Industry: Applied in advanced material research and high-grade steel processing.
- Energy Industry: Used for turbine components, valves, and high-performance parts.
Customization Capabilities
Dingfeng Industrial Furnace provides comprehensive customized solutions according to customer production requirements.
- Vacuum Level & Pump System: Customizable vacuum pump configurations (e.g., rotary vane + roots pump, or diffusion pump) to achieve specific ultimate vacuum levels.
- Extreme Depth & Diameter: The pit's dimensions can be fully tailored to accommodate oversized and extra-long high-value workpieces.
- Heating Element Material: Options include high-grade metallic alloys (like Molybdenum, Tungsten) or graphite heaters based on the maximum operating temperature.
- Gas Quenching System: Can be equipped with high-pressure inert gas quenching systems for rapid, controlled cooling under vacuum conditions.
- Automation & Data Logging: Fully integrated PLC and SCADA systems with real-time monitoring and recording of vacuum curves, temperature profiles, and process parameters.
