Ordinary Well Furnace
The chamber sits below floor level. You load materials vertically. That gives you even heating and less distortion. What processes can you run? Annealing, quenching, tempering, normalizing, carburizing – pretty much everything. It's especially good for shafts, rods, pipes, rolls, wire coils, and big mechanical parts.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of ordinary well furnace in China. If you're going to wholesale durable ordinary well furnace made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition

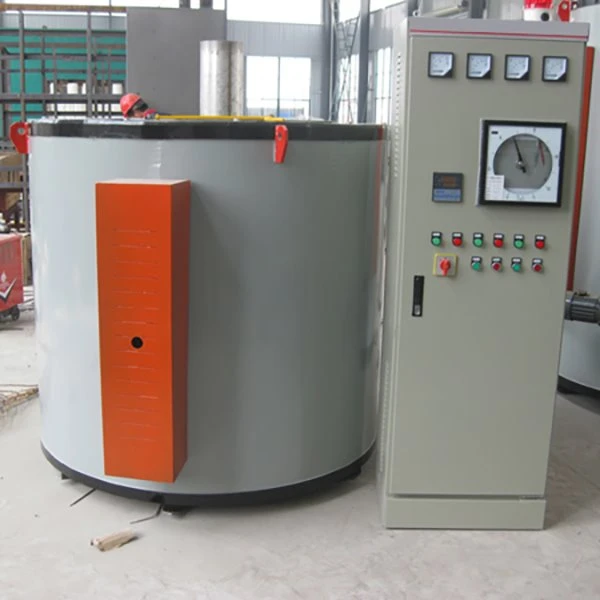

Ordinary well furnace. Some people call it a pit furnace or a vertical furnace. It's a vertical industrial heat treatment furnace that goes in the ground. Used for long, cylindrical, or heavy metal workpieces – things that don't work well laying down.
The chamber sits below floor level. You load materials vertically. That gives you even heating and less distortion. What processes can you run? Annealing, quenching, tempering, normalizing, carburizing – pretty much everything. It's especially good for shafts, rods, pipes, rolls, wire coils, and big mechanical parts.
Working Principle
You hang the workpieces from a fixture or directly from the furnace lid. Lower them down into the deep chamber.
Close the heavy lid. Seal it.
The heating elements run up and down the vertical walls – electric resistance wires or gas radiant tubes, depending on what you ordered. They bring the chamber up to temperature.
A circulation fan – high temperature rated – pushes air down and around. Down the center, up the sides. That gets heat to the whole length of the workpiece. Without that fan, the top gets hotter than the bottom. Every time.
You hold at temperature for whatever soak time your material needs. Then lift the parts out. Cool them or quench them, depending on the process.
Features
Minimizes bending
Gravity works for you when parts hang straight. No sagging like you get with horizontal loading.
Even temperature top to bottom
Multi-zone heating plus a recirculation fan.
Saves floor space
Goes in the ground. Only the lid and maybe a small platform sit above floor level.
Heavy load capacity
The pit is just a concrete hole with a steel liner. It can handle a lot.
Good sealing and atmosphere control
The lid seals with sand or pneumatic compression. That matters for protective atmosphere work.
Energy efficient
Fiber lining or brick. Fiber heats up fast and cools down fast. Good for job shops that cycle once a day. Brick holds heat better.
Applications
The Ordinary well furnace is used in many fields,including:
Metallurgical industry. Steel bars, alloy materials, metal products.
Machinery manufacturing. Shafts, rollers, cylinders, heavy mechanical parts.
Automotive industry. Axles, drive shafts, engine parts.
Aerospace industry. Alloy structural parts and precision components.
Oil and gas industry. Pipelines, drill rods, pressure equipment components.
Rail transit industry. Railway shafts, rods, transportation equipment parts.
Heavy equipment manufacturing. Large engineering machinery and industrial structural components.
