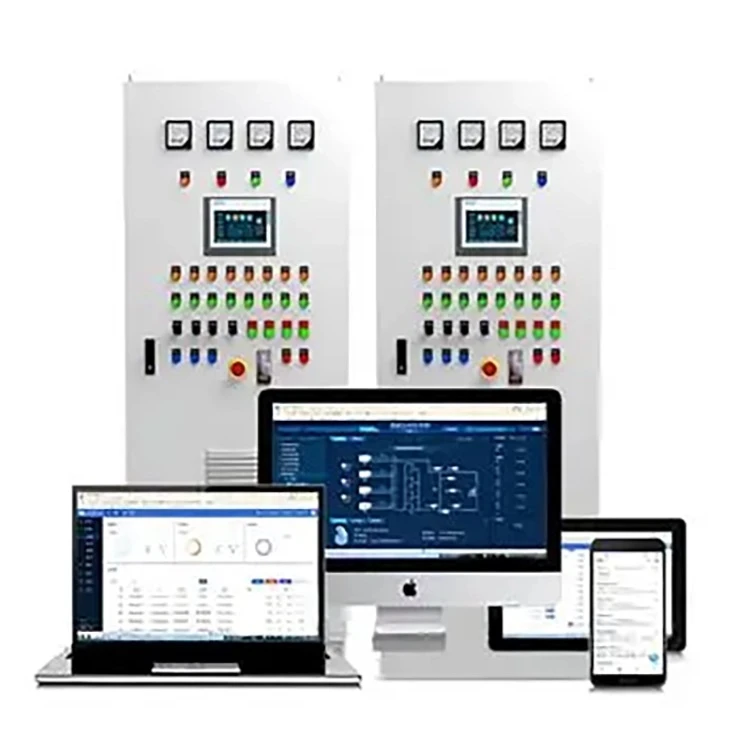

Furnace Control System

Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of furnace control system in China. If you're going to wholesale durable furnace control system made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

Product Definition



Furnace control system is everything that makes the furnace run automatically. Hardware and software together. Not one box, but a network – heaters, fans, valves, PLCs, sensors, computers. All talking to each other.

The job is simple to say but hard to do: follow the thermal recipe exactly, waste as little energy as possible, and make every part come out the same.

Working Principle



Closed loop feedback. Sensors inside the furnace – thermocouples, pressure transducers, flow meters – send real time data to the PLC or industrial computer. The controller looks at that data and compares it to the setpoints you programmed.

If the furnace is too cold, the controller turns up the heat. Too hot, it turns down. That's PID logic. The controller sends signals to the actuators – SCRs for electric heating, modulating valves for gas, variable frequency drives for fans.

The loop never stops. Measure, compare, adjust. Measure, compare, adjust. That's how the furnace stays on the curve.

• Field sensors. Thermocouples, oxygen probes, pressure transmitters, gas analyzers. They're the eyes of the furnace control system. A dead thermocouple means the furnace is blind. I tell customers to check their sensors first when something looks wrong.
• Central controller. PLC or dedicated temperature module. This is the brain. It runs the logic and executes the cycle.
• Power regulators. SCR or SSR. These adjust the heating power. SCRs are smoother than contactors. No clicking on and off. For precise work, SCRs are worth the extra money.

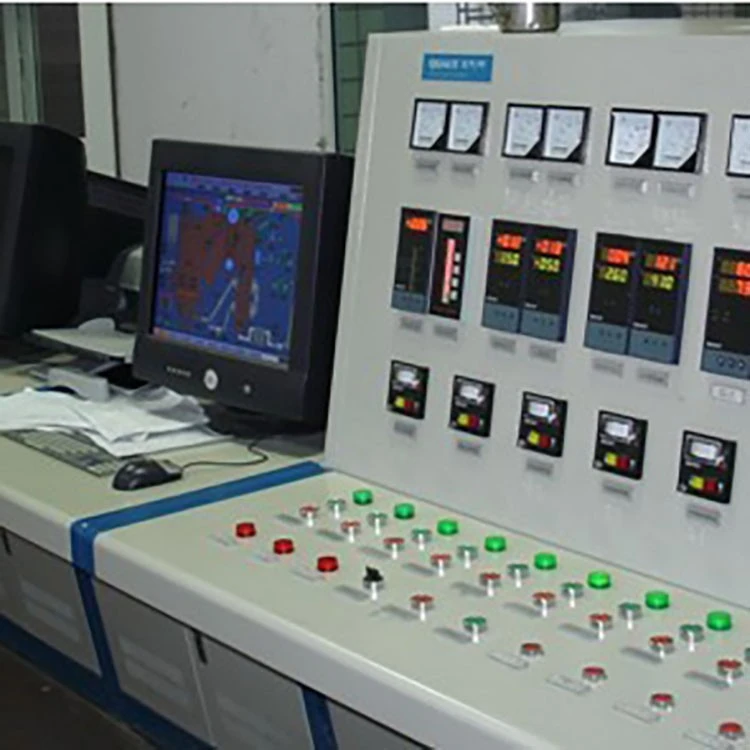

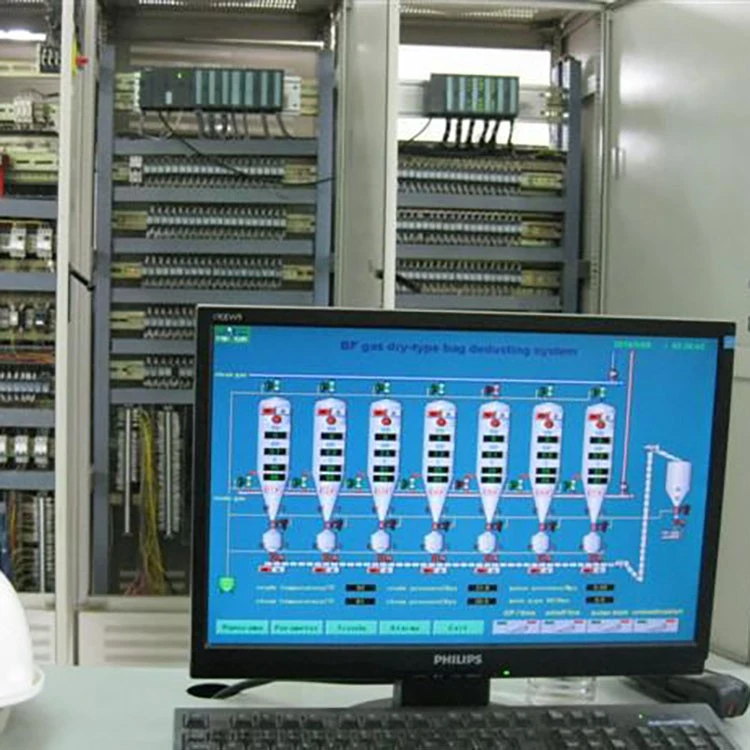

• HMI. Touch screen or industrial PC. This is where the operator sees what's happening. Set parameters, watch the process, acknowledge alarms.
• Communication network. The wires and protocols that let everything talk to each other. Profibus, Ethernet, Modbus – depends on the system. When these fail, the system falls apart. I've seen a loose connector take down a whole furnace line.
• Monitoring software. Real time supervision, data storage, report generation. This is how you prove to a customer that their parts were treated correctly. For aerospace work, this software is not optional.

Applications



Heat treatment. The furnace control system runs the cycles that optimize material properties. Annealing, quenching, tempering – the controller makes sure the steel gets what it needs.

Vacuum furnaces. Stable temperature control prevents cracks and makes sure the parts densify properly. A vacuum furnace without a good control system is just an expensive box.

Semiconductor manufacturing. Ultra accurate thermal and atmosphere control. Wafer production doesn't tolerate temperature swings. The control system has to be tight.

Chemical industry. Temperature regulation for high temperature reaction furnaces. The control system keeps the reaction stable.

Aerospace. Standard-compliant heating for critical aviation components. The control system not only runs the cycle but also records every second of it.
