Furnace Control Console

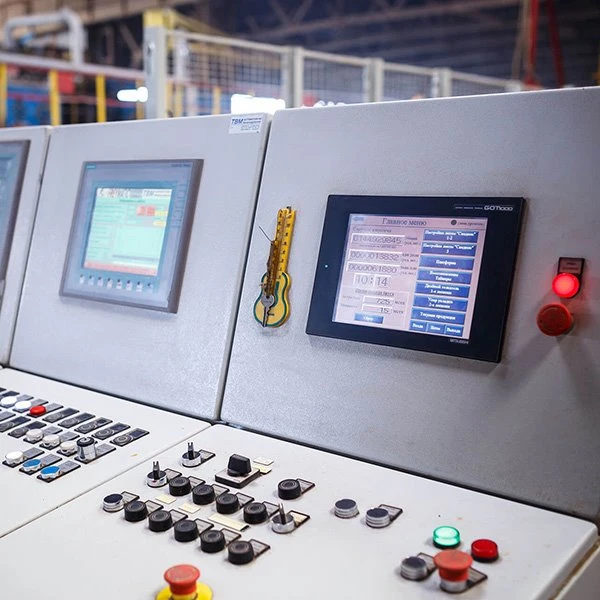

Furnace control console is the box the operator stands in front of. Floor standing or desk mounted – whatever fits your shop. It has touch screens, physical buttons, indicator lights, chart recorders, and an emergency stop. The control cabinet inside the electrical room handles the power. The console handles the operator. That's the split.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of furnace control console in China. If you're going to wholesale durable furnace control console made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
Furnace control console is the box the operator stands in front of. Floor standing or desk mounted – whatever fits your shop. It has touch screens, physical buttons, indicator lights, chart recorders, and an emergency stop. The control cabinet inside the electrical room handles the power. The console handles the operator. That's the split.
You use it every day. Start a cycle, stop a cycle, check temperatures, look at alarms. It's the human interface to the furnace.
Working Principle
The furnace control console connects to the main control cabinet – the one with the PLC – via communication cables. Ethernet, Profibus, whatever your system uses.
When the operator pushes a button on the console – say Start Heating or Open Door – the signal goes to the PLC. The PLC runs its logic and sends signals back. The console screen updates with temperatures, vacuum levels, gas flows, alarm status.
It's a loop. Operator to console to PLC to furnace to PLC to console back to operator.
Features
- Easy to use. Touch screen or physical buttons. Your guys can learn it in a day. But here's something I've learned: old-timers often prefer physical buttons. They want to feel the click. Touch screens don't give that feedback.
- Real time monitoring. You see temperatures, pressures, status of each zone. One glance tells you what's happening. But don't put too much information on one screen. A customer of mine had a console that showed 50 parameters at once. The operators couldn't find anything. We simplified the display to 12 key readings. They stopped calling for help.
- Process programming. You can store multiple heat treatment programs. Pull up a recipe, hit start. No punching in setpoints every time. A tool steel shop runs 30 different recipes on their console. They label them by material and section thickness – H13 50mm, A2 25mm, D2 75mm. Operators don't have to remember anything.
- Alarms and safety. Over-temperature, overload, system errors – the console shows them immediately. Where the problem is and sometimes what to do about it. But the alarm text needs to be clear. One console said "TC Fault" which could mean a dozen things. We changed it to "Thermocouple – Zone 2 – Open Circuit." The operator knew exactly what to check.
- Compatibility. Works with most PLCs and SCR power controllers. We've hooked these up to furnaces from a dozen different manufacturers. Not always plug and play, but it works. The biggest headache is different communication protocols. Some speak Modbus, some Profibus, some Ethernet IP. We keep a box of protocol converters in the shop.
- Data management. The furnace control console records process data. You can pull it off by USB or Ethernet. Some customers send it to cloud storage for traceability. An aerospace customer emails me their data logs every month. I've never seen anything wrong, but they like having a second pair of eyes.
Applications
Batch heat treatment
Pit furnaces, box furnaces, vacuum furnaces. You use the console to manage loading, processing, and unloading.
Continuous heat treatment lines
Central monitoring for pusher furnaces, roller hearths, mesh belts. One console overseeing the whole line.
Laboratory and R&D
Precise manual control. Good for experiments where you need tight data logging. A university lab runs their small vacuum furnace from a console in the next room. Keeps the heat out of the lab.
Heavy industry
You can put the console a safe distance from the furnace. The operator watches a hot, dangerous process from a cool, safe room.
