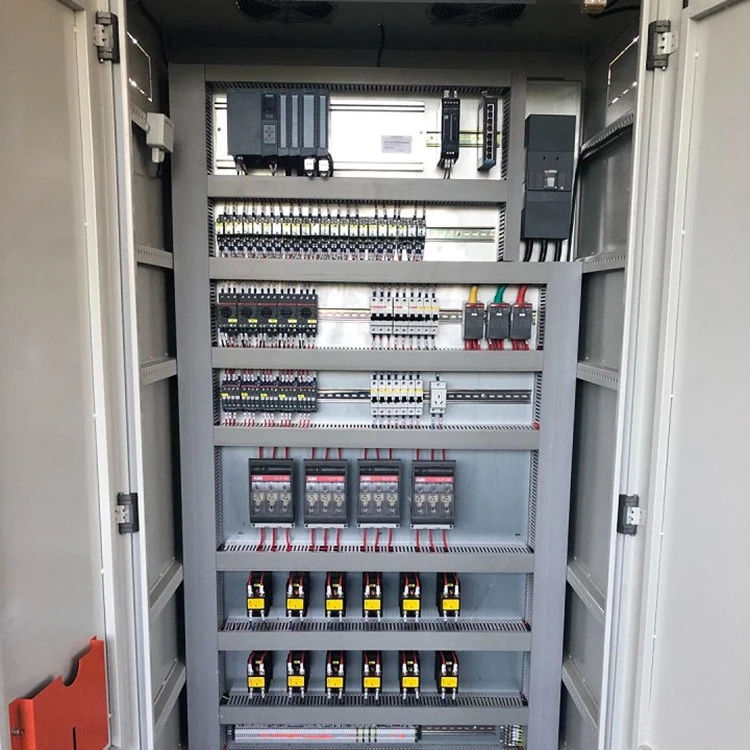

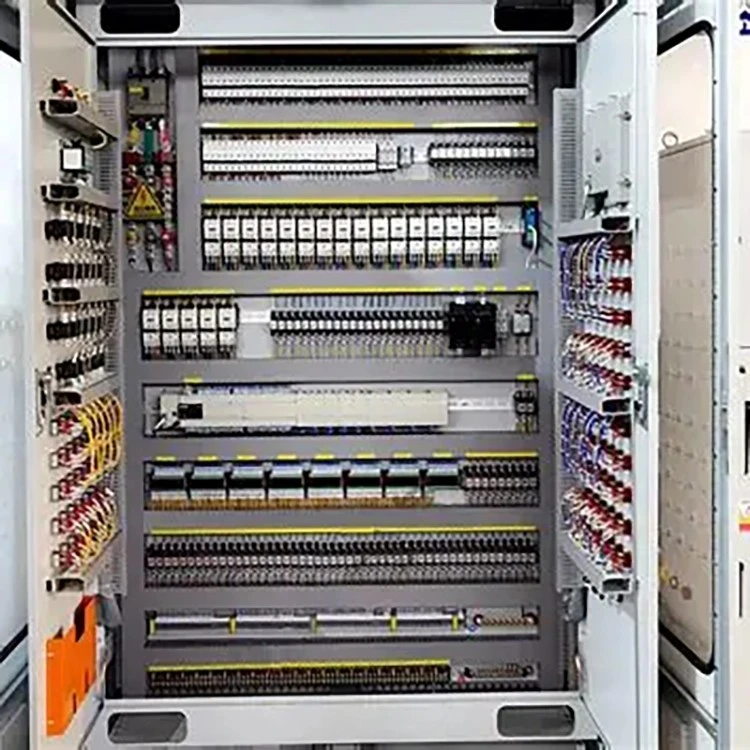

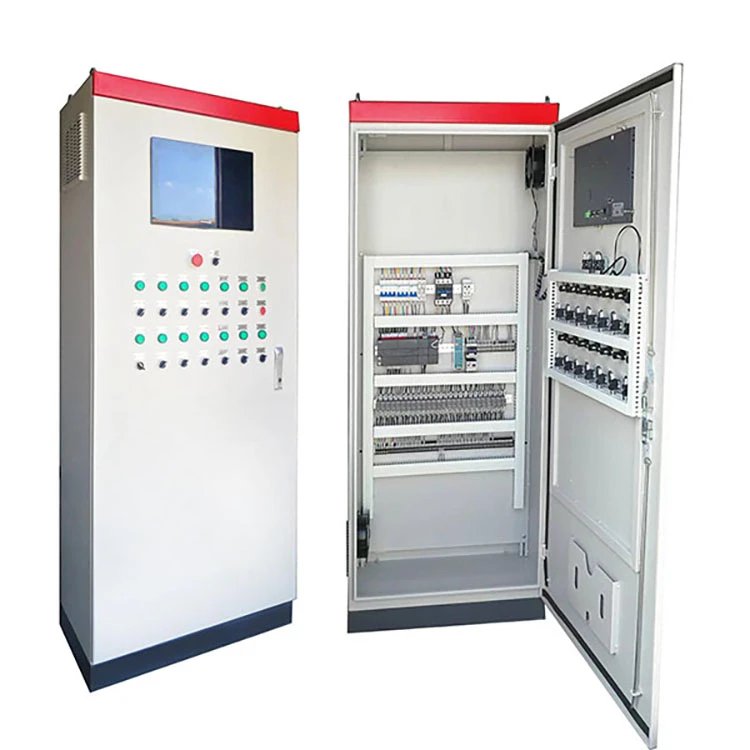

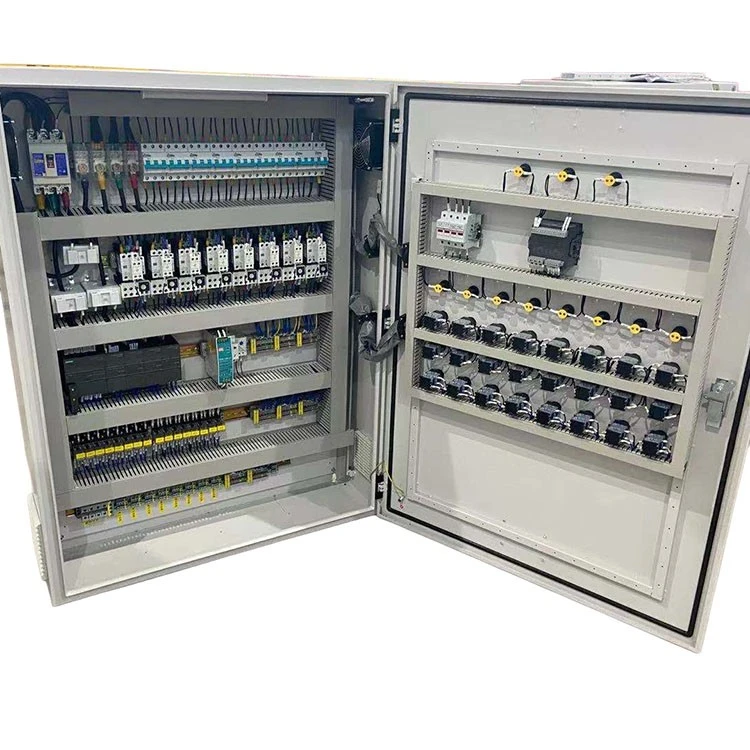

Furnace Control Cabinet
Furnace control cabinet Is the brain of the furnace. We use a standard industrial enclosure – no fancy brand name needed. The cabinet has automatic and manual modes. In auto, the PLC runs the cycle. In manual, an operator can override for troubleshooting or special runs.
Protection circuits are built in: overcurrent, overvoltage, undervoltage, phase loss. Plus an alarm module that trips when something goes wrong. A phase loss can kill a heating element fast. The cabinet shuts down before that happens.
Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of furnace control cabinet in China. If you're going to wholesale durable furnace control cabinet made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Definition
Furnace control cabinet Is the brain of the furnace. We use a standard industrial enclosure – no fancy brand name needed. The cabinet has automatic and manual modes. In auto, the PLC runs the cycle. In manual, an operator can override for troubleshooting or special runs.
Protection circuits are built in: overcurrent, overvoltage, undervoltage, phase loss. Plus an alarm module that trips when something goes wrong. A phase loss can kill a heating element fast. The cabinet shuts down before that happens.
Working Principle
The cabinet gets signals from sensors – thermocouples, pressure transducers, flow meters, limit switches. These go to the PLC and temperature controllers.
Based on the program you set, the system adjusts:
Heating power. Solid state relays or SCRs. SCRs are smoother – they don't click on and off like contactors. You get tighter control.
Zone temperatures. Each zone has its own PID loop.
Atmosphere controls. Valves open and close. Gas flows.
Cooling and interlocks. The furnace won't let you do dumb things – like open the door while the elements are live.
Temperature Control Accuracy
The spec says ±1°C to ±5°C. That range covers different conditions. In a small lab furnace with good tuning, ±1°C is real. In a 10-meter-long production furnace with drafts and loading variations, ±5°C is more honest. A customer running a 2-meter box furnace for tool steel tempering measured ±2°C across the load using nine thermocouples. That's good enough for H13 dies.
Features
- Overcurrent: Shuts down if current exceeds set limit.
- Overvoltage: Prevents element damage from line spikes.
- Undervoltage: Stops erratic control when line voltage drops.
- Phase loss detection: A must for three-phase systems. One customer lost a phase on a Friday night. The cabinet detected it and shut down. Saved his heating elements.
Applications
Furnace control cabinet is widely used in many fields,including :Heat treatment furnaces, vacuum furnaces, industrial heating equipment, metallurgy and foundry.
