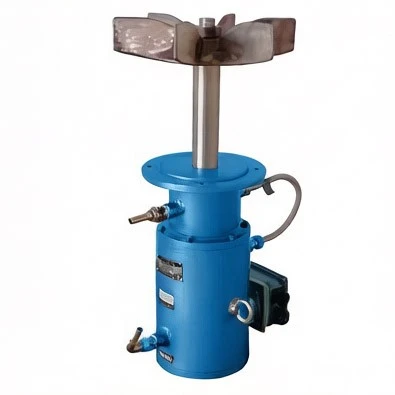

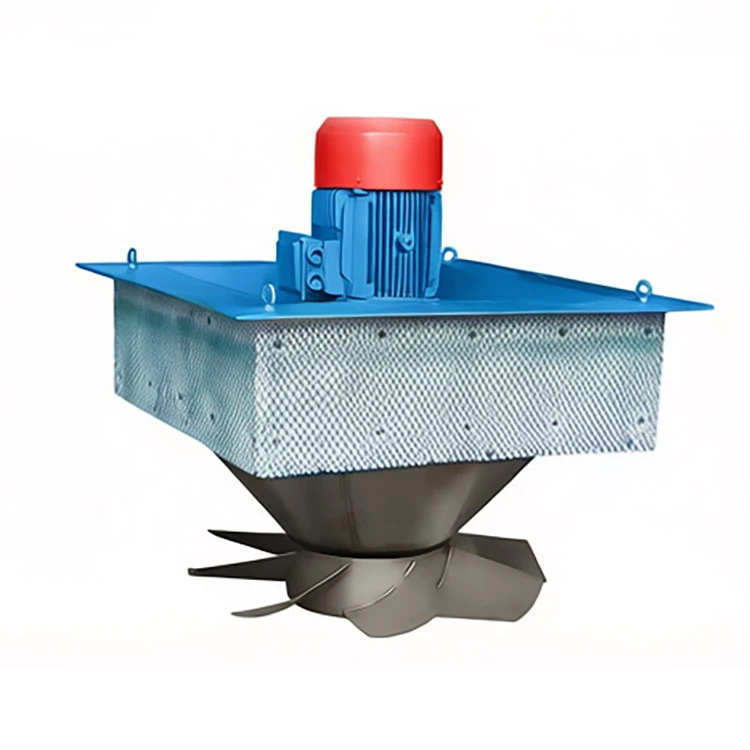

Sealed Water Cooling Fan

Danyang Dingfeng Industrial Furnace Co., Ltd. is one of the most reliable manufacturers and suppliers of sealed water cooling fan in China. If you're going to wholesale durable sealed water cooling fan made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.

Product Definition



Sealed water cooling fan is for places where a regular fan would die. High heat, dust, corrosive fumes – that kind of environment. It has a sealed housing and a water jacket around the motor. Water runs through the jacket, pulls the heat out, keeps the bearings alive.

Working Principle



Two things protect this sealed Water Cooling Fan.



First, the water cooling system. Cold water circulates through a jacket around the motor housing. The water pulls heat away from the windings and bearings. Even if the air around the fan is scorching hot – say 80°C or more – the motor stays cool enough to run continuously.



Second, the sealed design. Gaskets, O-rings, shaft seals – everything is sealed. Dust doesn't get in. Moisture doesn't get in. Corrosive gases stay out.

• Handles high ambient heat. The water jacket keeps the motor running steady when the surrounding air is above 60°C. We've had fans running at 90°C ambient for years without failure.
• Sealed against contaminants. Dust, vapor, corrosive chemicals – the motor is protected. A regular fan in a cement plant will fill with dust and seize in six months. This one lasts for years.
• Compact size. The motor doesn't need its own cooling fan, so the whole assembly is shorter. Fits into tight spaces where a regular motor wouldn't go.
• Quiet operation. No external cooling fan means no whining noise from a little plastic fan. These run almost silent.
• Suitable for hazardous areas. The sealed, spark-free design is safe for explosive environments. But check your local codes – not every version is certified for every class of hazard.

• Heat treatment furnaces. Cooling the bearings and motors on high temperature circulation fans. A tempering furnace at 650°C will cook a standard motor bearing in a week. Water cooling keeps it running for years.
• Welding equipment. These fans survive the radiant heat from welding torches. A robot welding cell uses one to cool the torch manipulator.
• Chemical and pharmaceutical plants. Seals keep corrosive and toxic gases from leaking out. One plant uses these fans to exhaust hydrochloric acid fumes.It runs 24/7. Standard fans would rust through in a month.
• Food and beverage. These sealed Water Cooling Fans handle high pressure water and steam cleaning. You can hose them down at the end of a shift. No problem.
• High humidity environments. Tunnels, subways, marine engine rooms. Anywhere that's always damp.

Dingfeng Industrial Furnace. We build to your needs.
